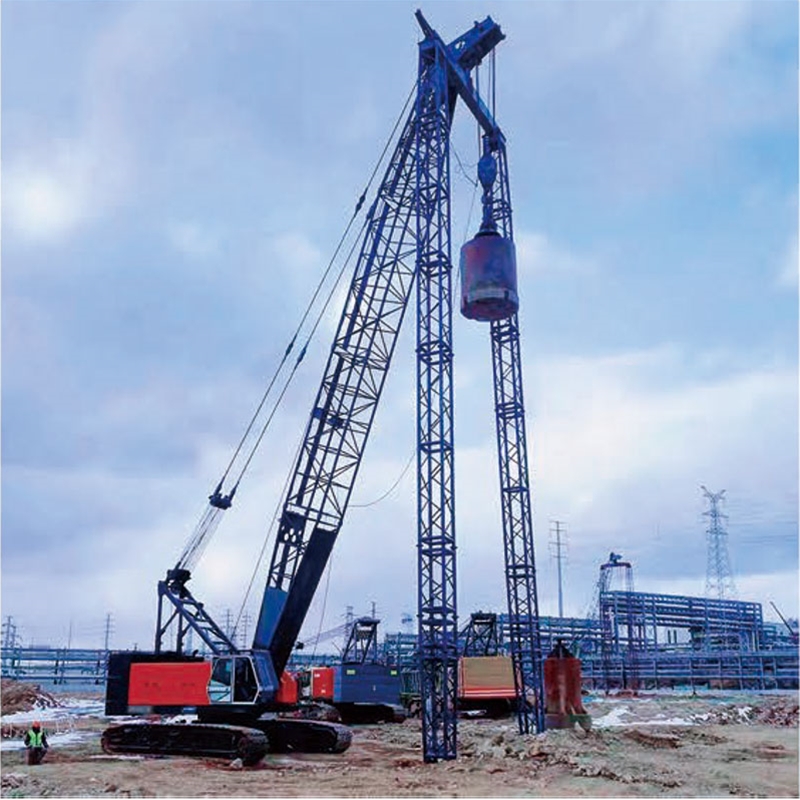

When the rammer is not equipped with additional devices, the maximum weight of the rammer can be up to 40t, and the rammer energy level can reach 8000KN.m. When the rammer is equipped with gantry, the maximum weight of the rammer can be up to 80t, and the rammer energy level can reach 16,000KN.m, which can satisfy most of the requirements of rammer construction.

Adopting machine-hydraulic integration design, i.e. mechanical and hydraulic combination. Large lifting tension, fast lifting speed. Stable and reliable lifting capacity, high construction efficiency. Safe, reliable and durable
The main machine adopts cartridge track design, which can reduce the turning resistance under the circumstance of ensuring the lateral working stability, and effectively increase the stability of the whole machine when spreading, which is stable and reliable during the operation: the main winch lifting adopts the mechanical internal rising belt lifting with the maximum tension of the single rope of 13.7t, and it is equipped with the air storage tank to reserve the air pressure to prevent the equipment from dropping the hammer and dumping the hammer phenomenon when the engine is off.
It protects the car body better. Equipped with large caliper disk brake and air-propelled oil brake system, the safety coefficient of the whole machine is improved. Dimensions of main machine (working condition)8210X6050x6370mm

The external dimension of the main machine is 8200×3500x3400mm, the maximum weight of a single piece is <39t, the counterweight is about 28t, and the weight of the whole machine is about 102t. When transporting, only the crawler, boom and counterweight need to be removed, and the main machine is equipped with outrigger cylinders, so that there is no need to dismantle the machine for transporting, and the counterweight can be separated from the rear canopy, which makes the transportation convenient and low-cost.
